Flashings designed for metal / sheet roof installations.
Available in 8 sizes from 12mm to 500mm (0.5″ – 20″) in both low temperature EDPM rubber or High Temperature Silicone (Red).
Temperature resistance degrees C
Low -55 High +135 (intermittent), +100 (continuous)
High Temp Silicone (Red)
Low -74 High +260 (intermittent), +225 (continuous)
Roof-types
Metal profiled
Flat Roofs
RES1 & RES2 EDPM Flashing
Aluminium Flashing for Tiled & Slate Roof
Temperature resistance degrees C
Low -55 High +135 (intermittent), +100 (Continuous)
High Temp
Low -74 High +260 (intermittent), +225 (continuous)
Roof-types
Flat Tiles – Slate Roof
Pipe external diameter fit
3 inch – 8 inch & 8 inch – 11 inch
Base
Aluminium
RES1 & RES2 EDPM Flashing (Lead Base)
Lead Flashing for Tiled & Slate Roof
Temperature resistance degrees C
Low -55 High +135 (intermittent), +100 (Continuous)
High Temp
Low -74 High +260 (intermittent), +225 (continuous)
Roof-types
Flat Tiles – Slate Roof
Pipe external diameter fit
3 inch – 8 inch & 8 inch – 11 inch
Base
Lead

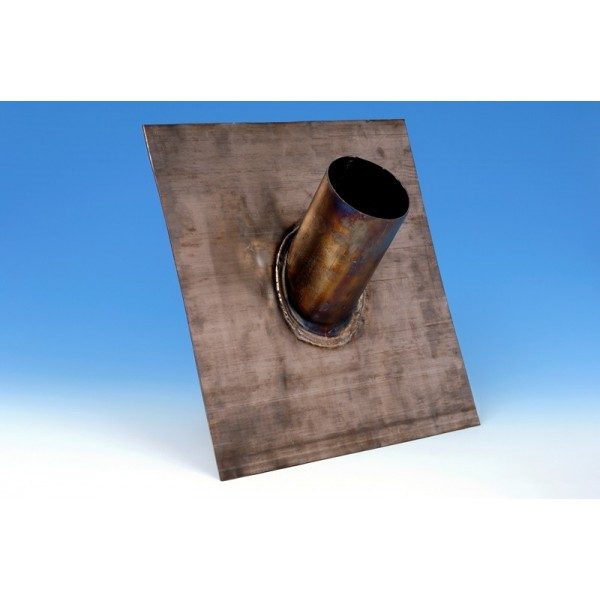

Lead Pipe Flashing
Made to order – please call to discuss pipe diameter and pitch required from horizontal.
